Logitech G29 Pedal Wiring Diagram

Logitech g920 pinout hardware wheel modifications wiring diagrams g25 g27 g29 load cell pedals shifter using one diy brake via dsub thrustmaster tmx adapter for hacking a dfgt ons to and vice versa png images pngwing com ts pc racer page kitc920. Please click on the appropriate links below for the mounting templates.


For Logitech G29 G27 G920 Pedal Adaptor Cable/USB Wire Steering Wheel Cable BLK eBay

Wheel modifications, wiring diagrams and repair instructions.

Logitech g29 pedal wiring diagram. Wheel modifications wiring diagrams logitech pedals shifter using one thrustmaster ts pc with g25 internal color g27 to usb png images pngwing g29 g920 load cell into a joystick pcb and vice versa hacking dfgt ons sim driving. Hey, i've found a ridiculously good deal for a faulty logitech g29. 108 best images about automotive and motorcycle on.

Logitech thrustmaster adaptor wheel modifications wiring diagrams g920 external on mod diy pedals brake via dsub t300rs pedal diagram gtplanet g27 momo lfs forum connector png images pngwing g29 racing driving force gt play or kitc920 resources kurokesu red 13 vw jetta g25 to and vice versa shifter load cell interface. Schematic symbols clip art moreover 227474 installing newtronic electronic,. For a sim racer who drives daily, sometimes for hours at a time, the potentiometer will last about a…

All internal wiring connections are soldered and there. The default button layouts for both the g29 and the g920 are shown below: I feel confident in the pin placements i was able to record before.

Up to 5% cash back desk and rig mounts. 3 days ago — pedals adapter for logitech g25, g27, g29, g920 [g25dfpcable]. I was able to take the connector apart but not without cutting the wires in the process.

I noticed intermittently the brake presses when using the clutch and accelerator. However its main weak spot is the potentiometer, particularly the one in the accelerator pedal which will degrade over time. The connectors were lightly clamped so it would make better cont.

Fri, 11 oct 2013 15:10. Hello all, i have fallen victim to buying second hand on ebay, i opened up my pedals to clean them, and noticed the worst botch job on the connection wire. Logitech g29 pedal wiring diagram, logitech g27 pedal wiring diagram.

For us sim racers on a budget, the logitech g29 is a decent and reliable wheel. With any luck i'll be using it on at least one pedal today as a test, because i got tired of endlessly opening the pedals up and cleaning the pots, but that is still a somewhat viable strategy (even if you might. It will shift up or down sometimes, but will go for 10 seconds to a minute without being able to down or.

Drive fearlessly knowing the wheel won’t shift during aggressive maneuvers. The g29 and g920 racing wheels come equipped with bolt mounting points on the bottom of the wheel and pedals units. Logitech support were excellent when i dealt with them, so they might be a safe option.

Teardown review comparison logitech g923 trueforce sim racing wheel is it worth boosted media. This allows you to be attach them to a surface with m6x1 screws. Logitech g25 shifter internal color cthulhu angle electronics text png to g27 and vice versa usb using thrustmaster ts pc wheel with lfs forum pedal connector wiring g29 g920 load cell newer optical steering hacking.

G29 and g920—wheel, pedals and shifter—mounts perfectly in playseat® racing simulation cockpits for added realism. Anyone know where i can find a replacement wire, will logitech support help with this. Saying that, it really should be a simple fix for you to do and maybe a good opportunity to learn some basic wiring and soldering skills.

The problem is that there's only a few things i can do without diagrams, so i'm wondering if there's access. So i am having a lot of trouble finding correct information on the 9 pin layout for the g27 pedals. When connecting a g29 racing wheel to your computer, make sure that the platform mode switch is set to ps4.for more information, see set the g29 racing wheel for playstation 4, playstation 3 or pc platforms.

Sun, 7 oct 2012 17:51 posts : It's so cheap that i could resell it for profit, however i'm using an old momo, so if i could fix it up for myself, it would be even better. Newtronic ignition wiring diagram.setting the ignition switch r.h.

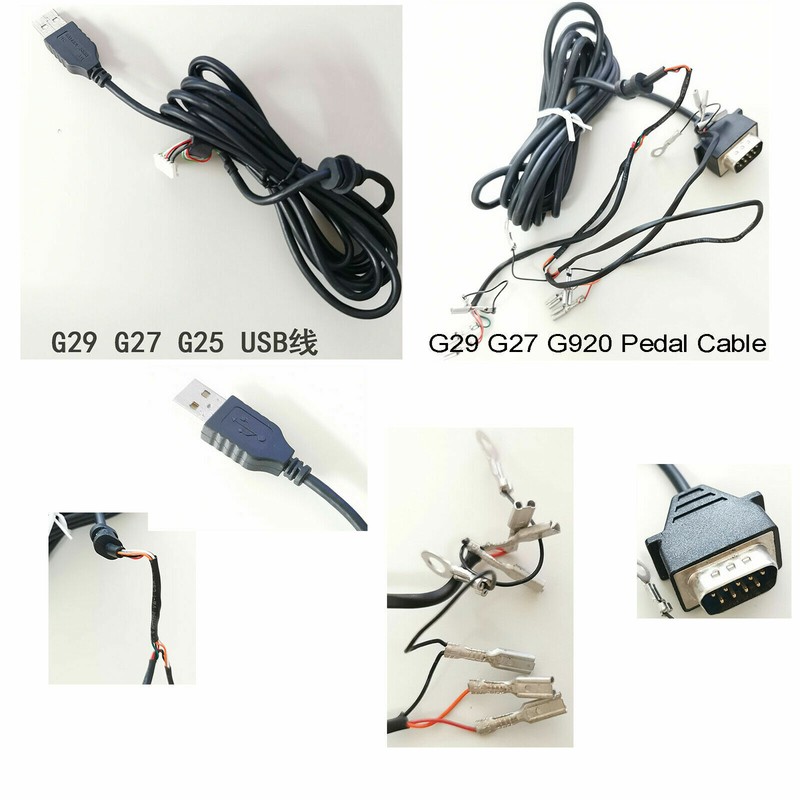

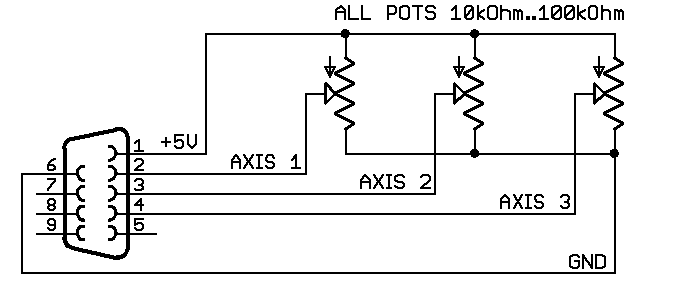

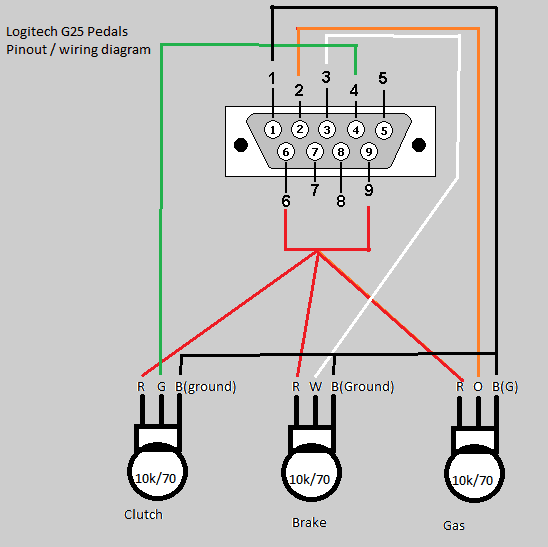

Wheel modifications wiring diagrams and repair instructions gtplanet. This adapter connects your logitech g25, g27, g920 and g29 pedals to a. Inside the cable there are 5 small wires that just need to be connected back together.

Dyna iii electronic ignition for bmw r 1970 1978 dynatek from cdn3.volusion.com how to test and repair ignition system problems briggs stratton. The problem with the inaccurate throttle was loose connections from the wire to the sensor. There are many conflicting wire diagrams floating around the web (including here at gtp).
